The Coniston Canopy for Modular Buildings

The Coniston Canopy is the perfect partner for modular buildings, creating all-year-round weather protection from the inside to the outside.

The Coniston Canopy for Modular Buildings
The Coniston Canopy for Modular Buildings

The Coniston canopy for modular buildings is our popular Coniston Wall Mounted Canopy, with specific brackets that have been adapted to enable to it to be fixed to modular buildings.

Because we understand that temporary buildings requirements different fixings, we developed these brackets to enable the Coniston to fix to the wall in a safe and stylish manner, without causing any potential issues to the building or the canopy.

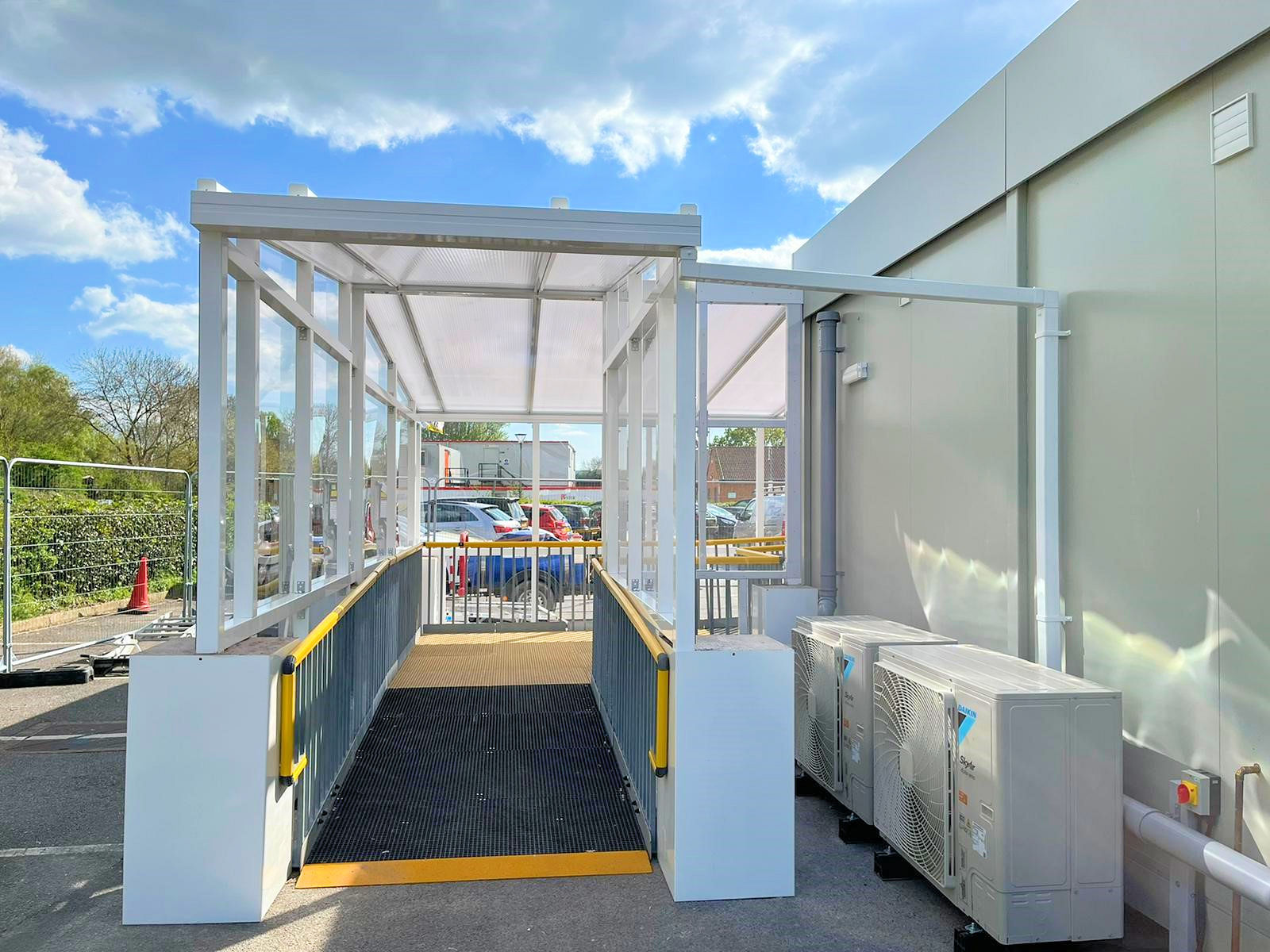

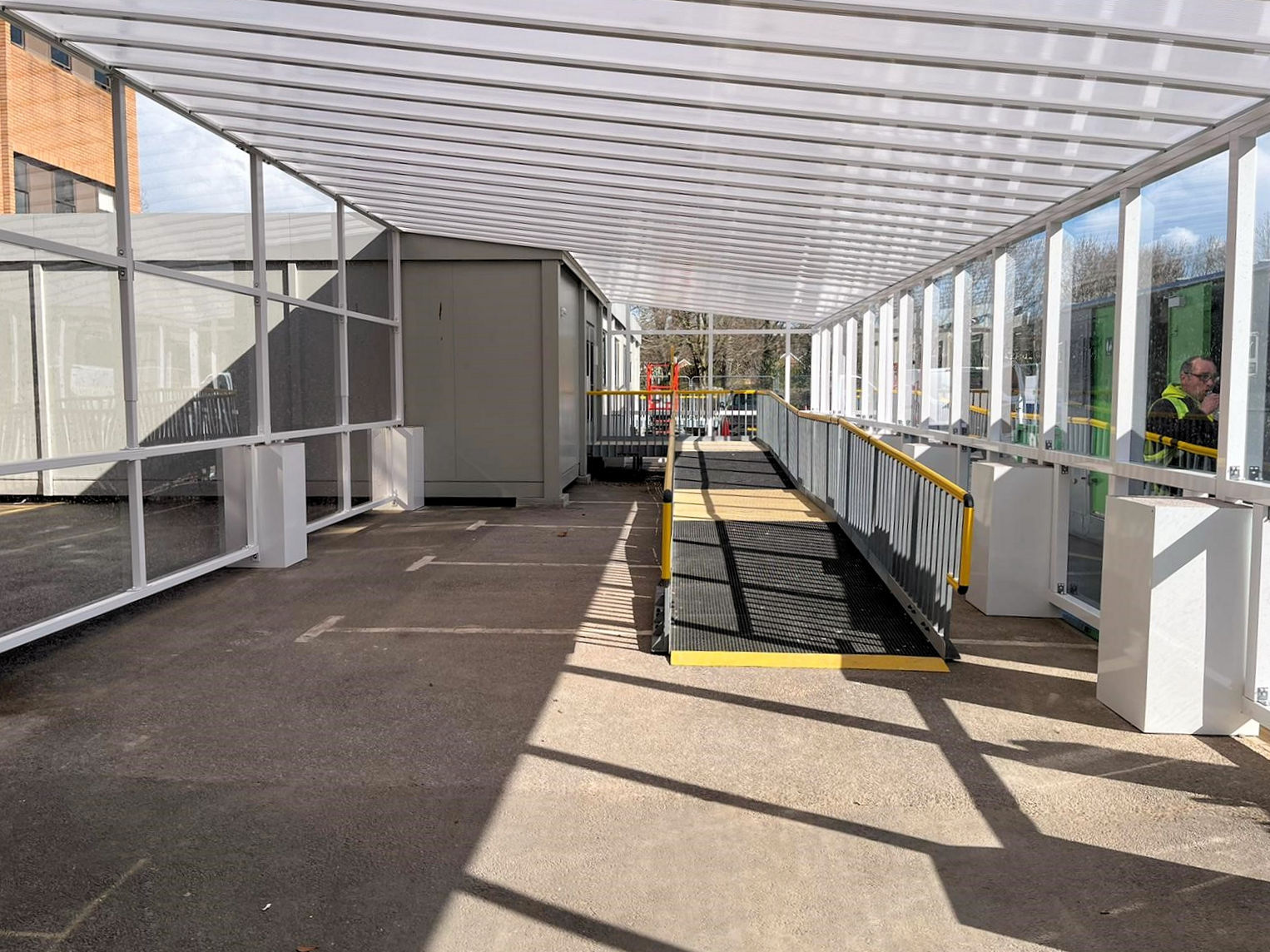

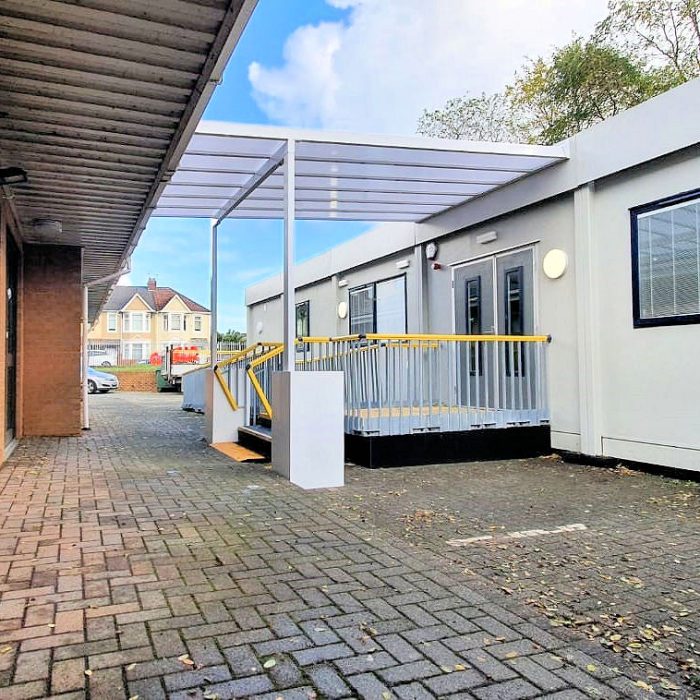

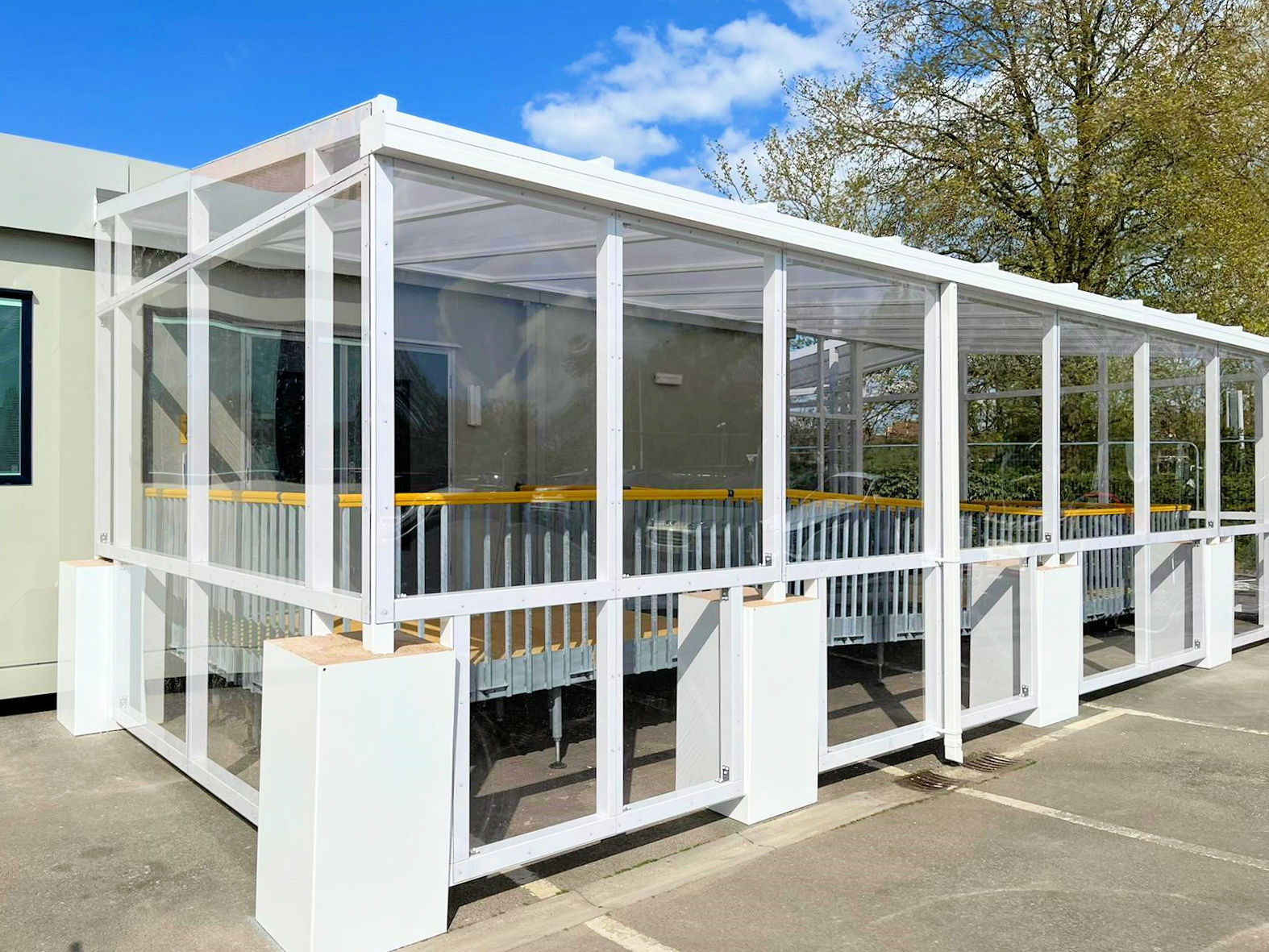

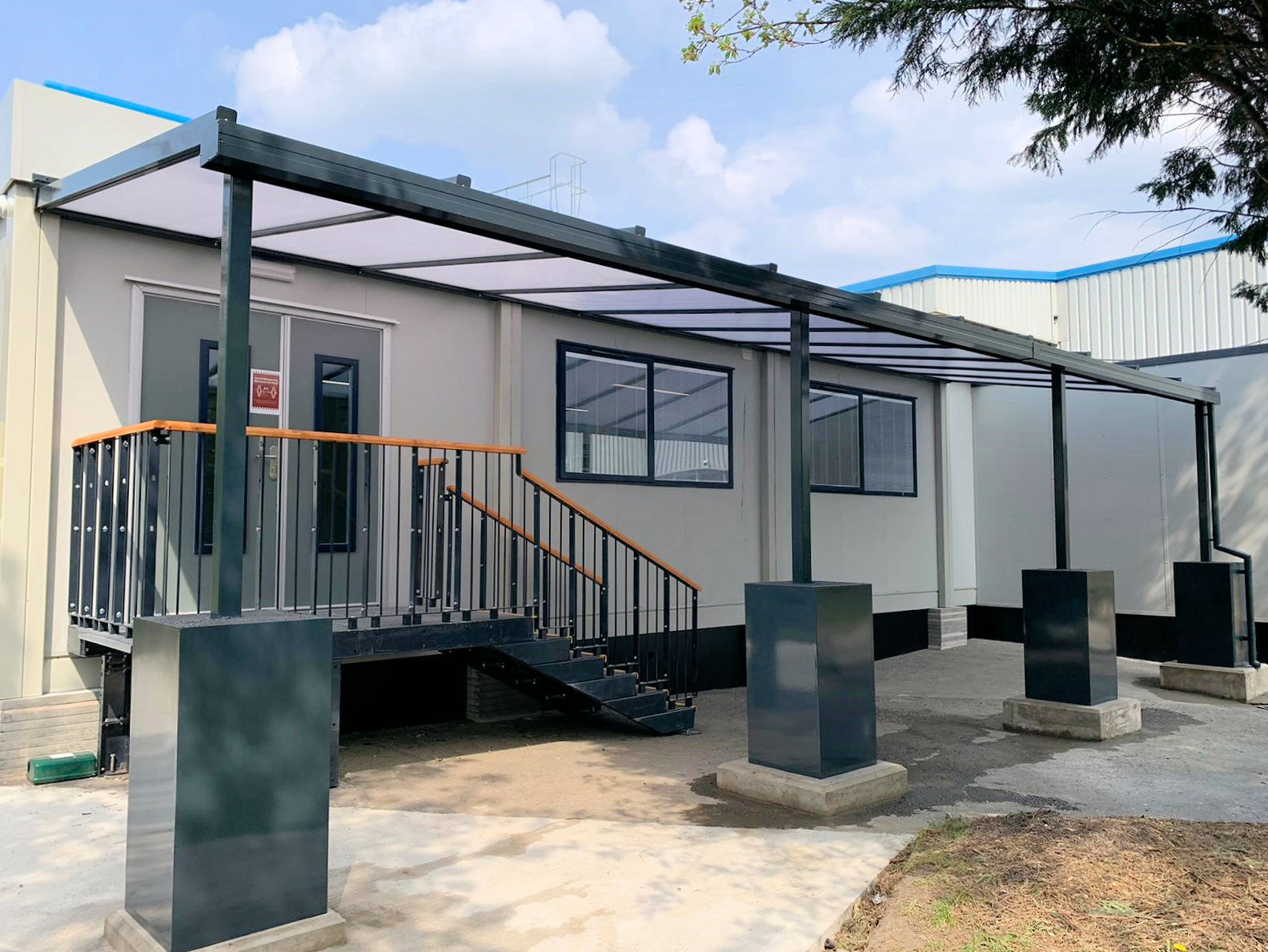

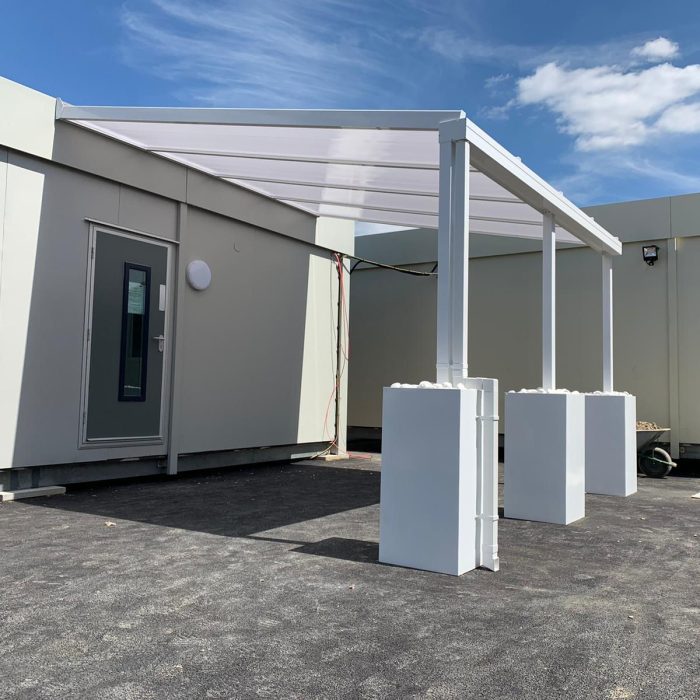

We have developed a solution when the ground cannot be excavated in the canopy area, or the customer would prefer the ground not to be excavated. By using a powder-coated and thermal galvanised steel planter filled with a mass of concrete this can provide structural stability to a canopy. Please note: this may not be suitable for all installations.

The Coniston frame which can be supplied as a wall mounted canopy, or a freestanding canopy is constructed completely from aluminium which makes it naturally rust and rot resistant. It also means that due to its robust construction, the Coniston is supplied with a 10-year guarantee and up to a 25-year life expectancy, so you know you are investing in only the best.

In addition to a strong, long-lasting canopy frame, the Coniston is covered with 35mm structured polycarbonate roof sheets. These roof sheets are vandal and shatter resistant and are co-extruded with a special UV layer during the manufacturing process which means that they will not turn yellow over time due to sun exposure.

The UV coated roof panels also protect those underneath the canopy from up to 98% of harmful UV rays, making it perfect for environments with children and vulnerable people such as schools and hospitals.

The Coniston canopy for modular buildings can be manufactured in any length, enabling you to cover the entire length of your modular building if required. This versatile canopy can also wrap around buildings, creating complete cover from the weather.

The built-in aluminium guttering system makes the Coniston easy to maintain and reduces the risk of damage to the gutters. The Coniston gutter is integrated into the canopy roof frame and features a design where, although debris can still make its way into the gutter, it is minimised and therefore prolongs the life of the canopy guttering.

Features & Benefits

  • Generous 6m Projection – Creates large, shaded spaces with minimal post requirements, maximising usability.
  • Unlimited Length – Flexible in design to fit any required length, tailored to your project specifications.
  • Comprehensive 10-Year Guarantee and 25-Year Life Expectancy – Ensures long-term reliability and provides confidence that your canopy will stand the test of time.
  • Durable Aluminium Construction – Crafted from robust aluminium with reinforced structural roof bars for superior strength and stability.
  • Built-In Aluminium Guttering – Features integrated guttering with aluminium downpipes for rapid installation and minimal disruption, resulting in a clean, seamless appearance that outperforms external systems.
  • High-Quality Stainless-Steel Fixings – Utilises 316 marine-grade stainless steel fixings for exceptional resistance to corrosion and durability.
  • 35mm Structured Polycarbonate Roof Panels – Lightweight panels that are up to 200 times stronger than glass, delivering excellent insulation (1.2 W/m²K) and UV protection. Available in both clear and opal finishes.
  • Reinforced Roof System – Designed to support weight for safe access during maintenance and emergency use, with the proper use of support boards.
  • Modern, Streamlined Appearance – Offers a sleek, high-quality design with clean lines that enhances the visual appeal of any location.
  • Superior UV Protection – The polycarbonate panels are coextruded with a UV-absorbing layer that provides over 98% UV protection, safeguarding occupants and prolonging the life of the canopy.
  • Custom Colour Options – Available in any RAL colour to complement school colours, branding, or existing structures (additional costs apply).
  • Optional Upgrades Available – A range of enhancements can be added to customise your canopy further. Click here: Optional Extras section for details.
  • Certified Fire Safety Standards – The panels meet stringent European fire safety regulations, including BS476 Part 7 (class 1) and EN 13501 B-S1, D0.

Design & Specification

Downloads:

Download our technical files including the product data sheet and the .PDF, .DXF, .IGES and .STL files. Please note, these files are for the standard Coniston Canopy and do not feature the brackets.

Product Data Sheet:

Click here to view the Coniston Wall Mounted Canopy Technical Specification Sheet

Technical File Downloads:

Free Coniston Specification Brochure:

Click here to view & download the free Coniston Canopy specification brochure

NBS & BIM

Please see below the NBS specs and BIM models for you to download and add to your project.

NBS:

BIM:

Colour Options

Aluminium Framework:

The Coniston’s fully aluminium framework is powder coated in white as standard to give your canopy a fresh, neutral look, however it can be powder coated in any standard RAL colour, allowing you to match your canopy to your outside aesthetics, or reflect your branding colours.

Additional RAL colours are available on request please click here to view the full RAL colour range >

Polycarbonate Roof Sheets:

The polycarbonate roof panels are available in a choice of  clear and opal.

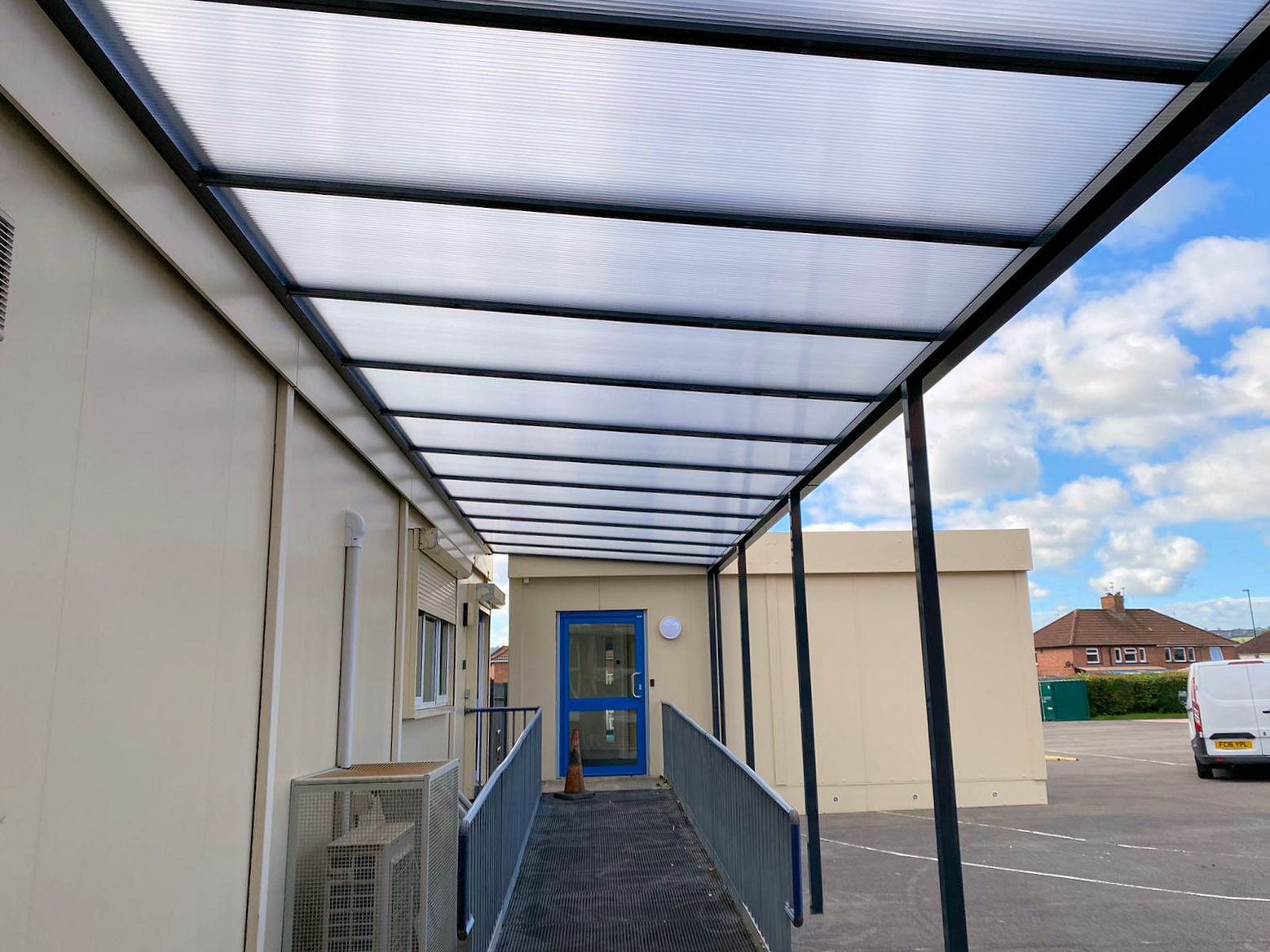

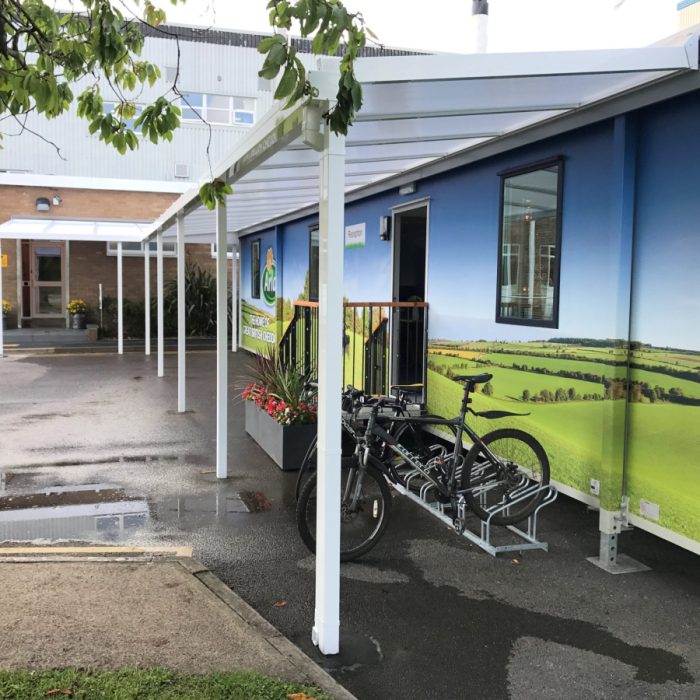

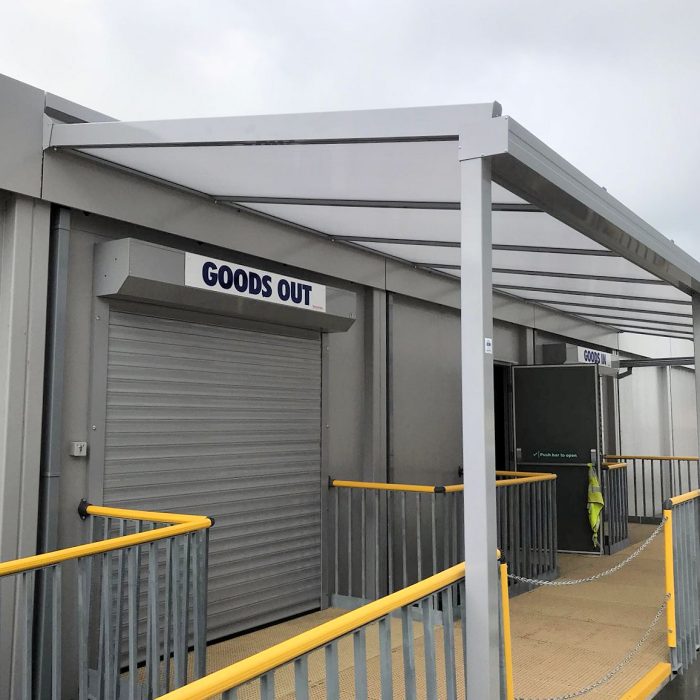

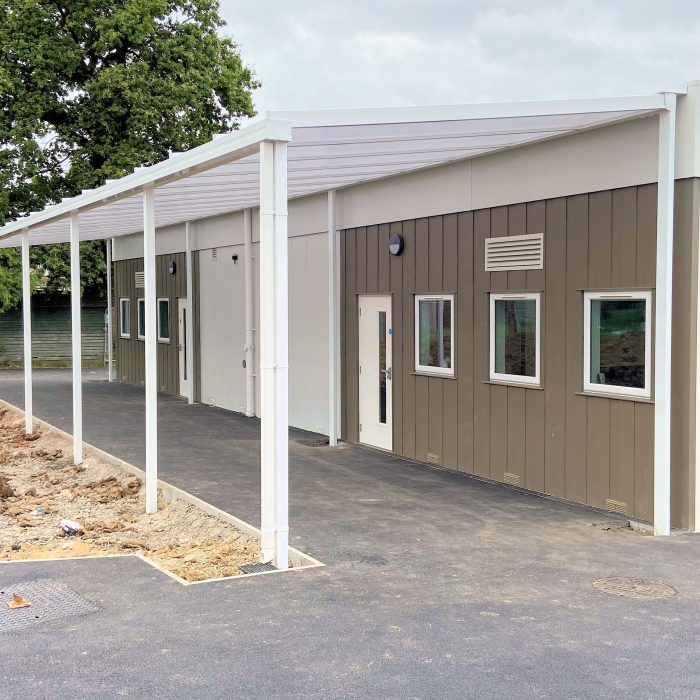

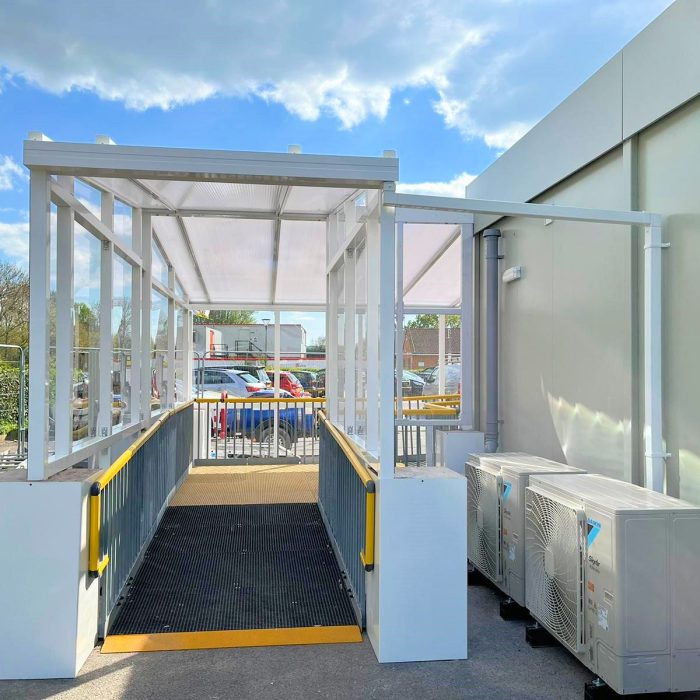

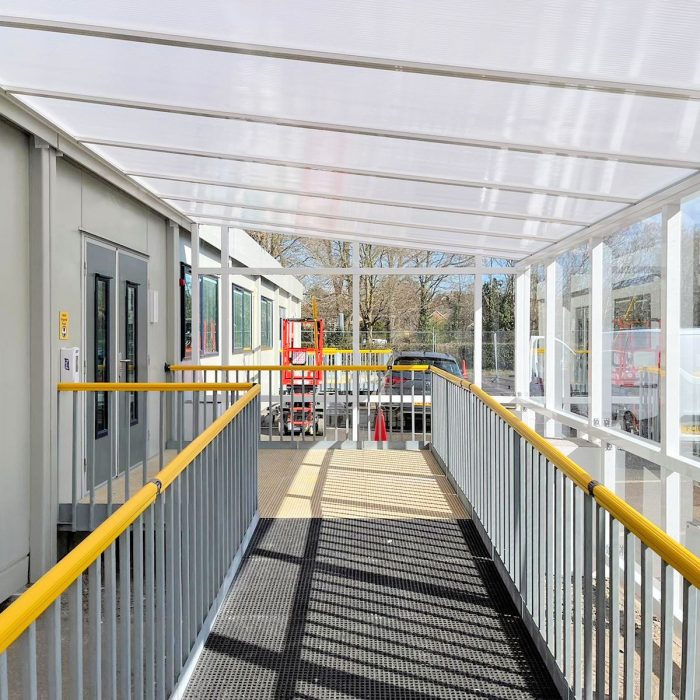

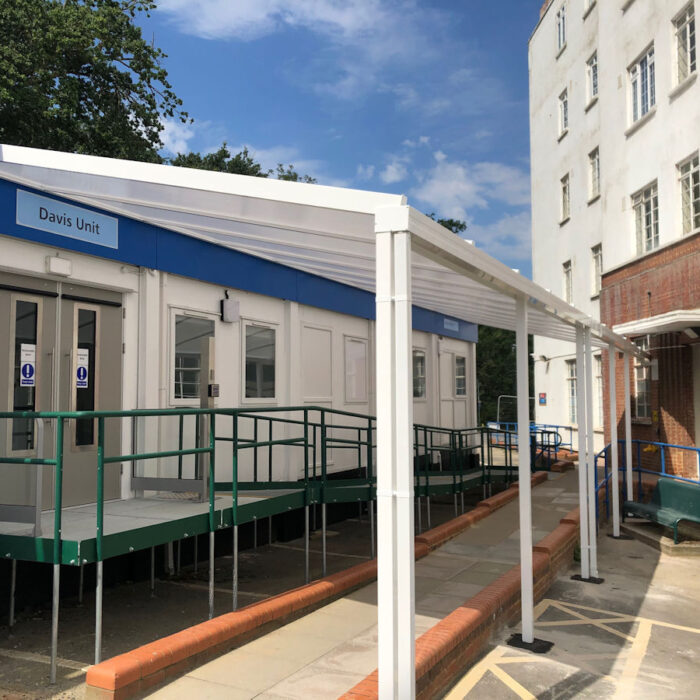

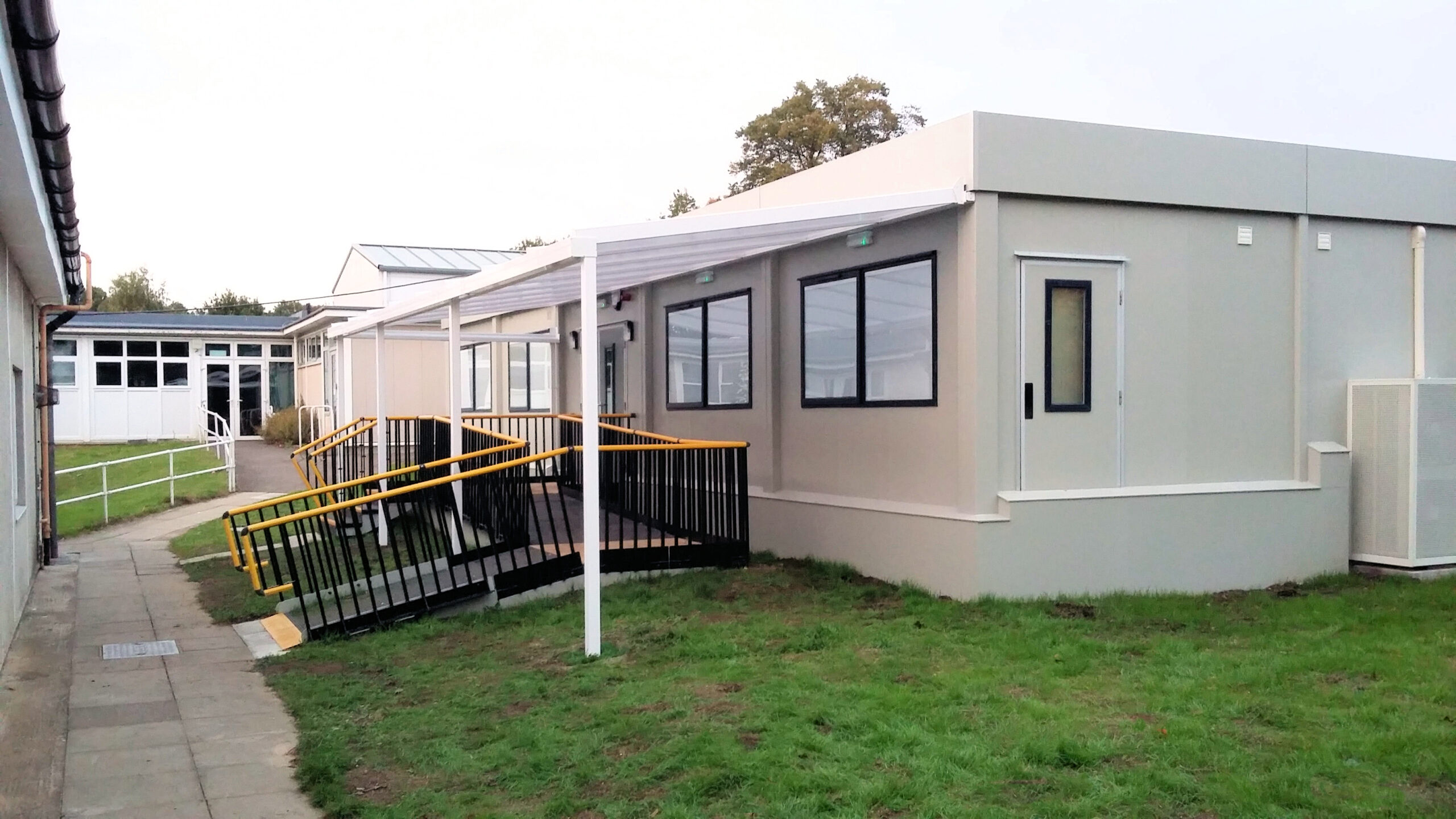

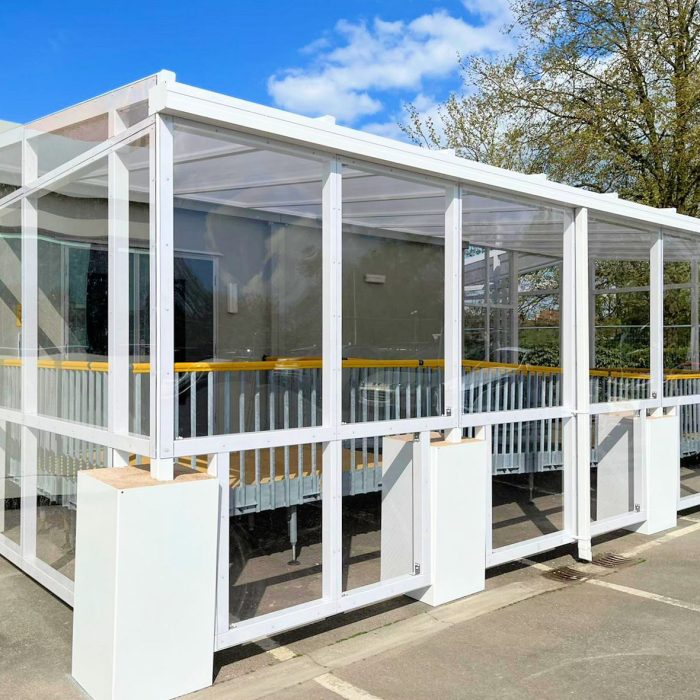

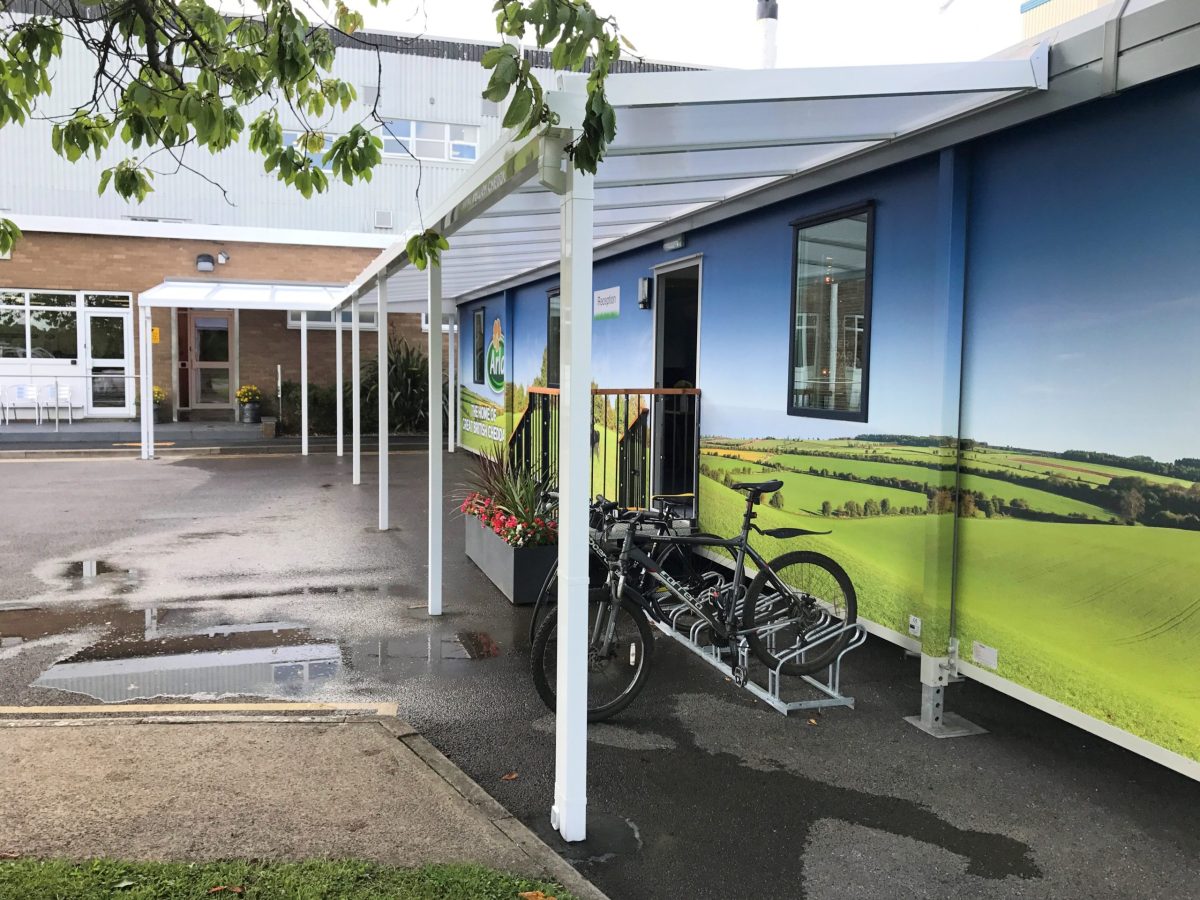

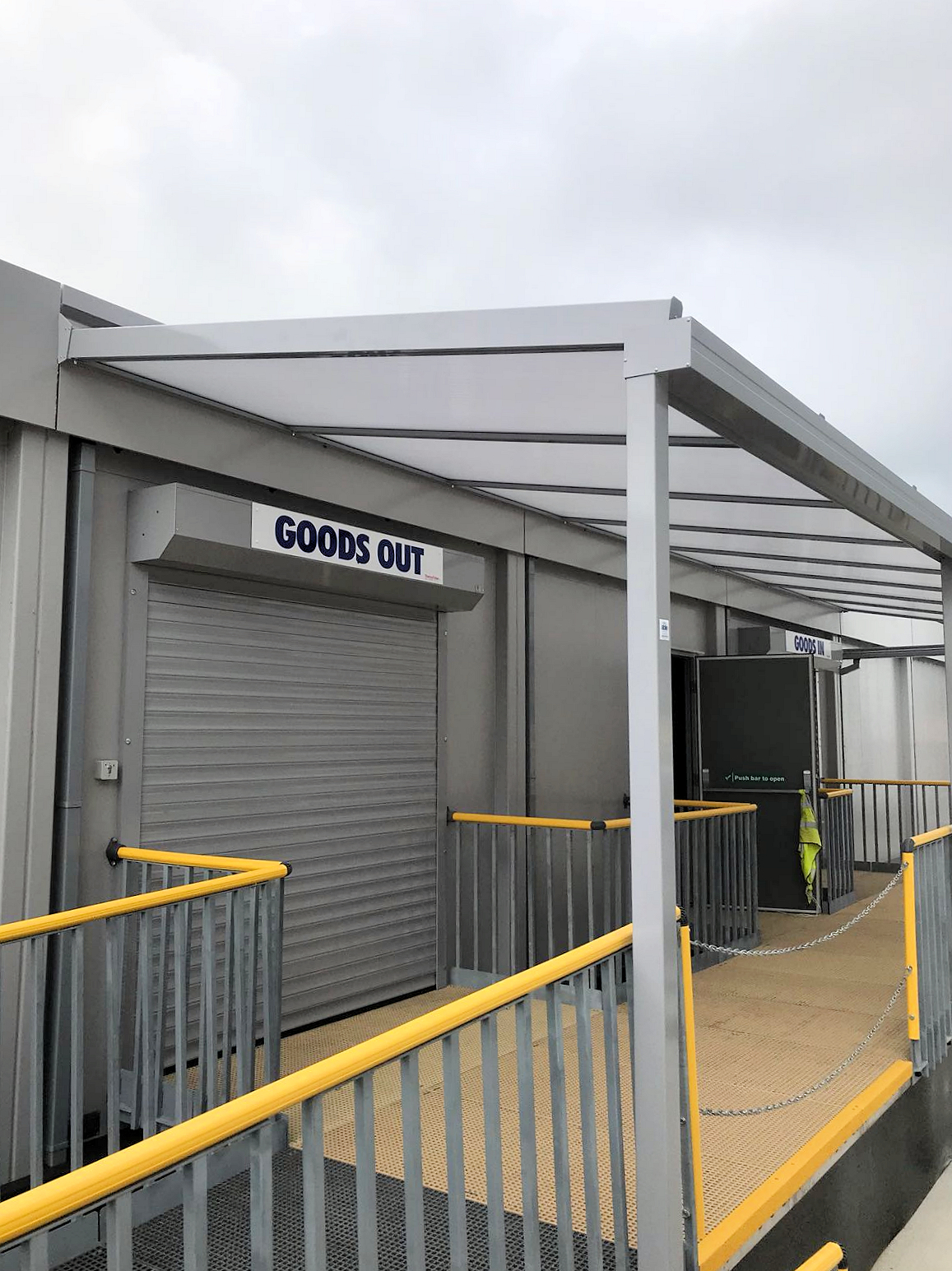

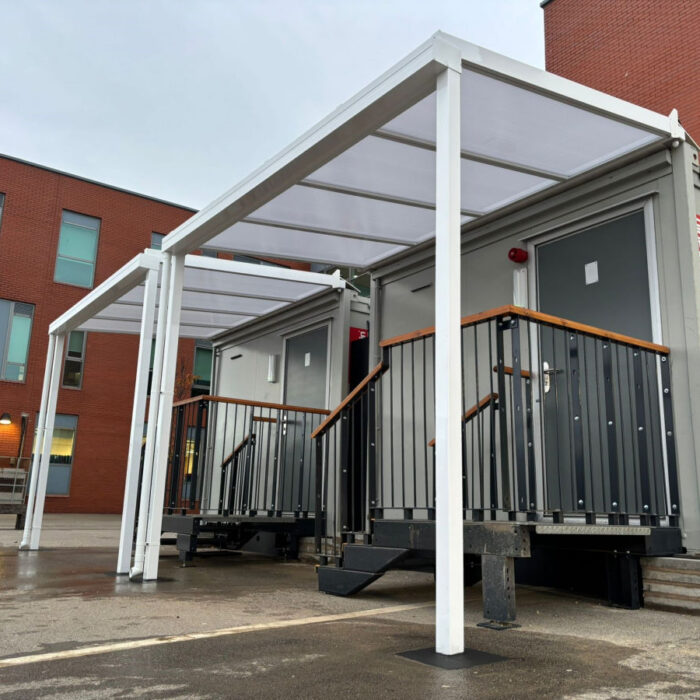

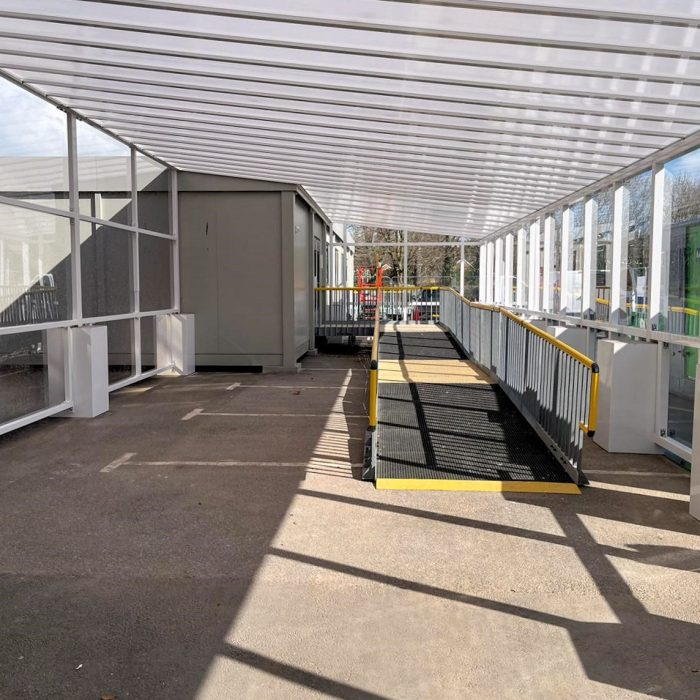

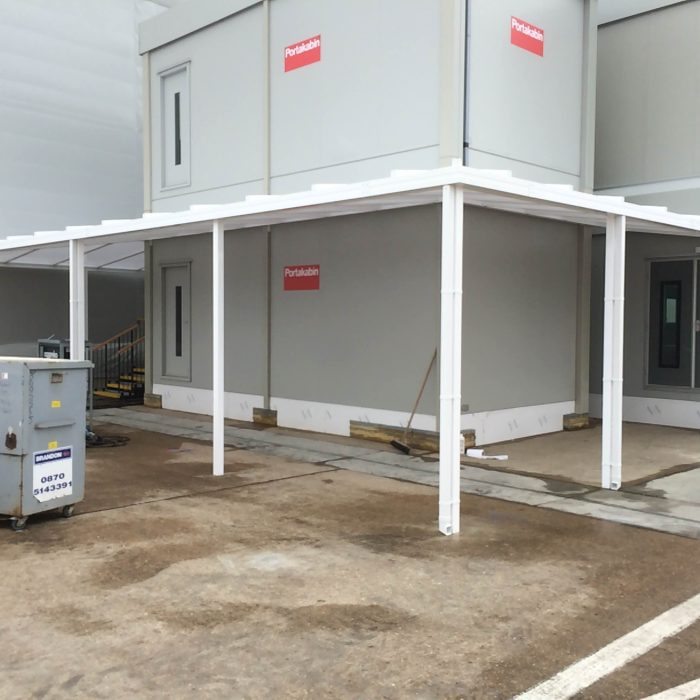

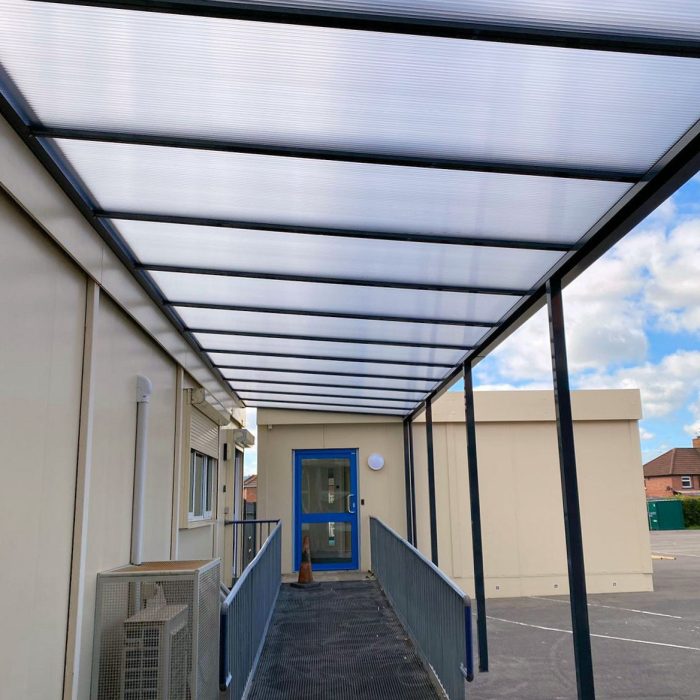

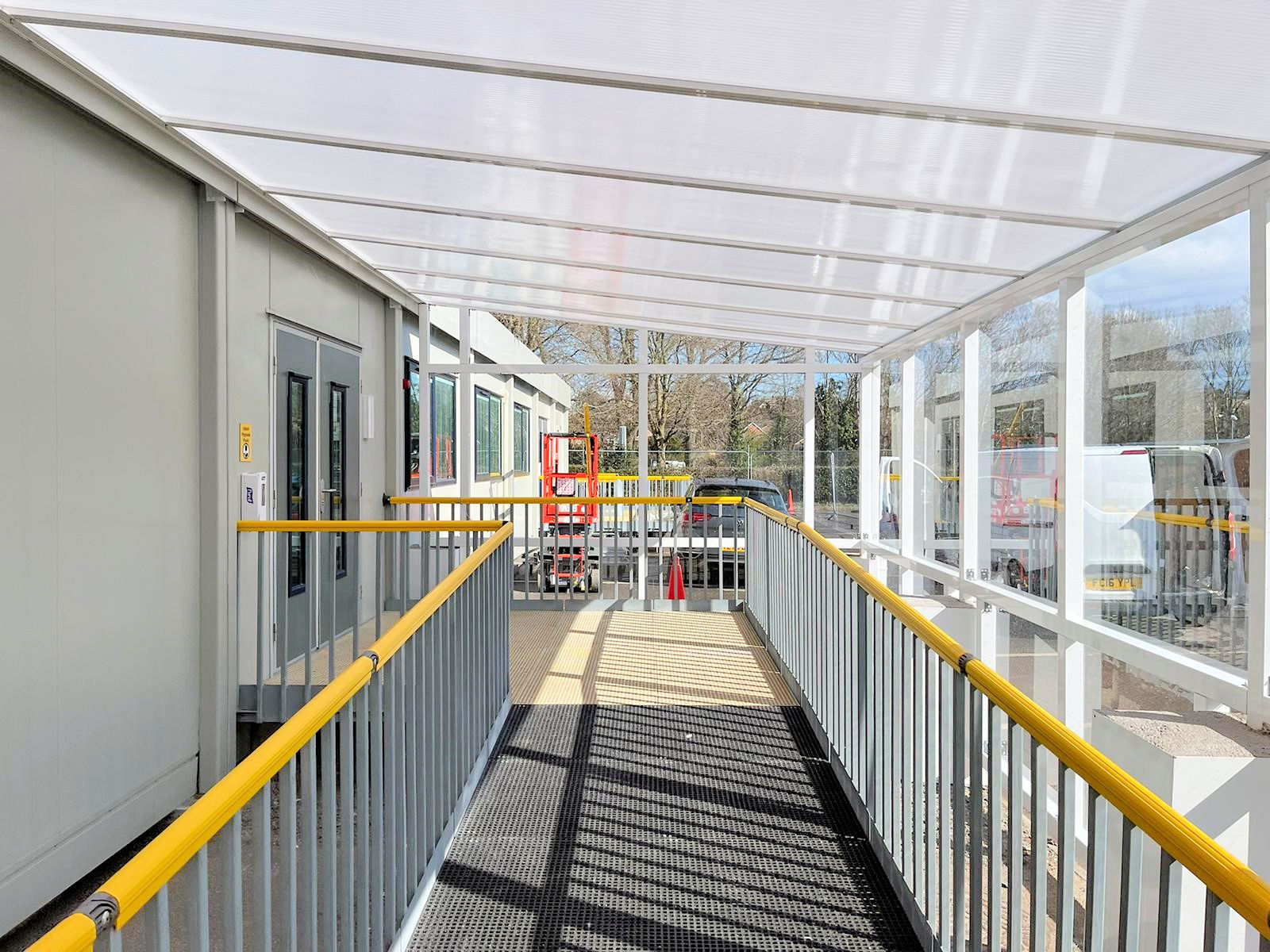

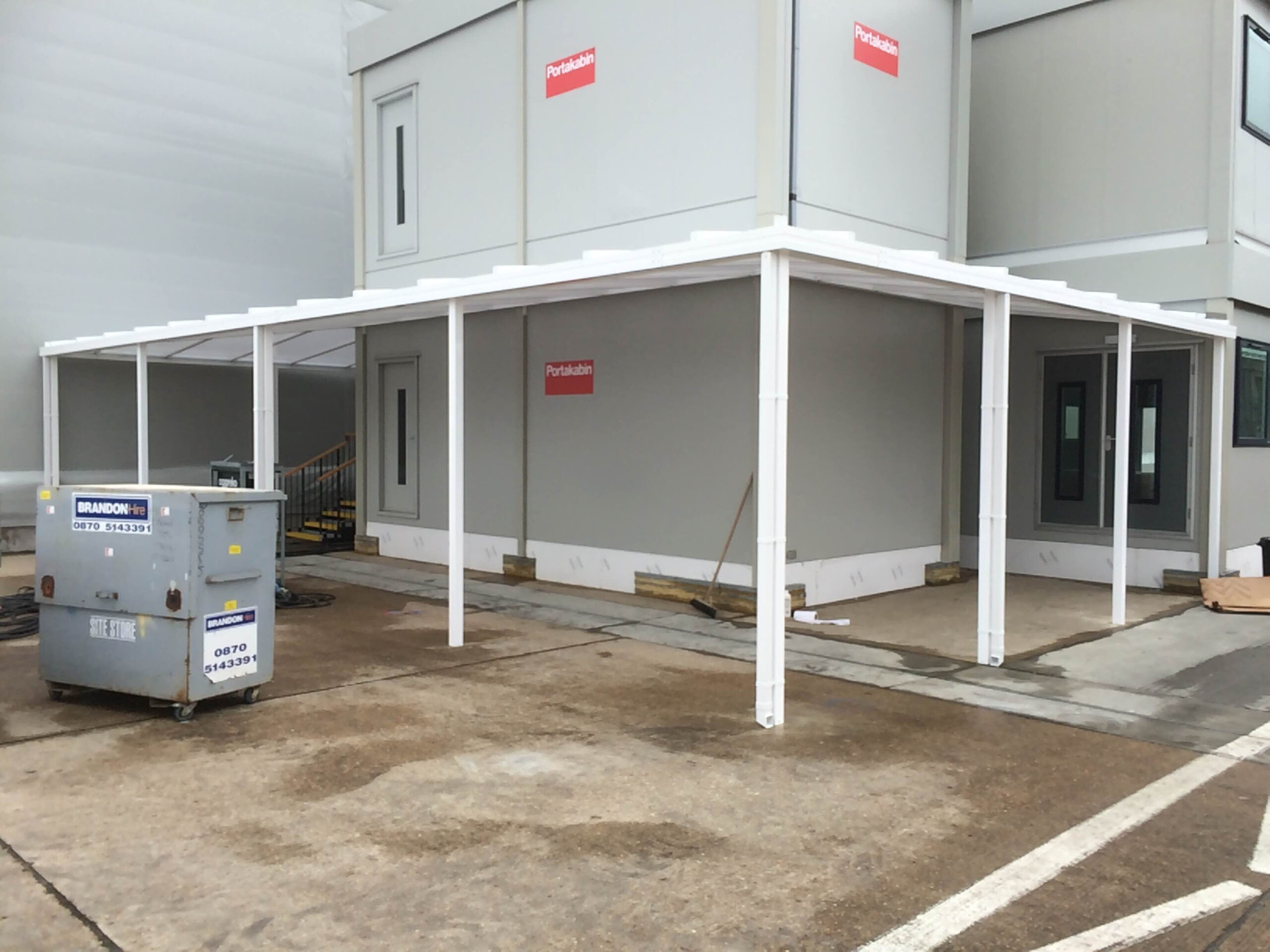

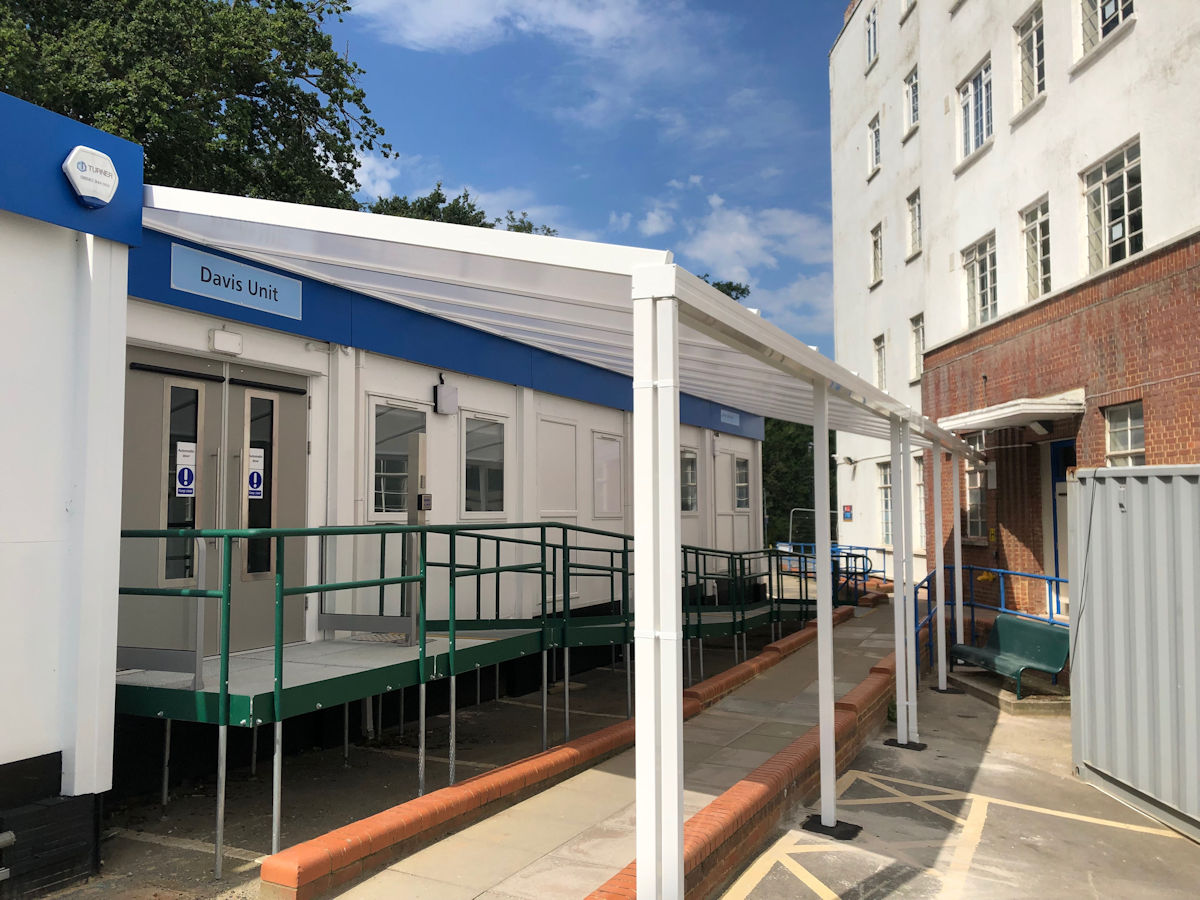

Recent Installations
